Revolved Features

A revolved feature is an object whose cross-sectional profile is constant around a specified axis.

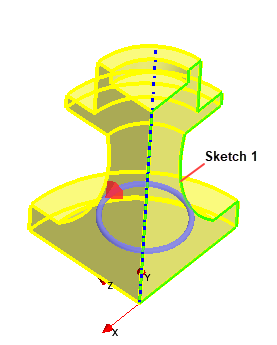

It is created by sweeping a two-dimensional profile, defined in a sketch or edge, around a specified axis by a given angle.

A revolved cut is defined in the same way; the volume that is defined by the revolved profile is subtracted from any bodies through which it cuts.

Requirements

For solid bodies:

The sketch must contain only closed loops, with no free edges.
Sketch entities must not overlap or cross each other.
For sketch entities containing two closed profiles, one profile must be entirely enclosed by the other. You cannot define more than two closed profiles for a revolve feature.

For sheet bodies:

Open sketches are supported.
Sketch entities can overlap or lie on top of each other.

The sketch must contain at least one construction line, which defines the axis about which the sketch revolves.
