Creating a Revolved Feature

The Revolve and Revolve Cut features share the same procedure. To create a revolved feature:

Either:
- Right-click the profile that you wish to revolve and choose Revolve or Revolve Cut.
- Click (Revolve) or (Revolve Cut) in the 3D-CAD toolbar and choose the source for the revolve feature.
- Select the profile feature within the 3D-CAD View window that you wish to revolve, then right-click and choose Revolve or Revolve Cut.
The Revolve panel appears.

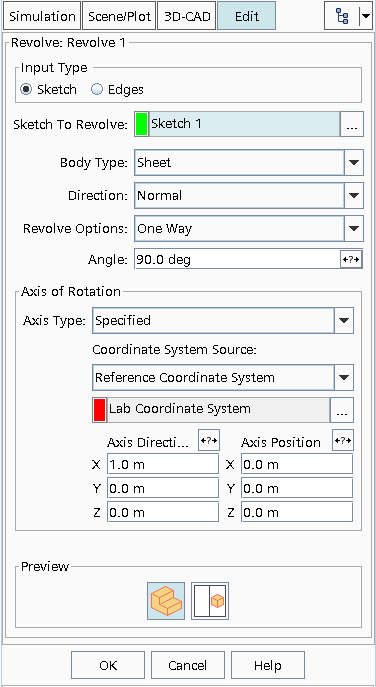

Enter the revolve parameters. See Revolve Panel.
To change the Angle parameter:
- In the Revolve panel set the Angle.
- In the 3D-CAD View scene, click and drag the arrow on the revolved surface. If you choose the Two Way Symmetric or Two Way Asymmetric then two arrows appear.
Expose any properties that you want to use as design parameters by clicking the (Expose Parameter) button next to the property.

A preview of the revolution is shown in the 3D-CAD View scene.
Click OK to perform the revolve.
