Draft Angle Limitation

When applying a draft angle to an inward curving profile, make sure that the projected surface does not split along the extruded distance.

The source profile that is shown in the following example splits when a draft angle is applied along the extrusion.

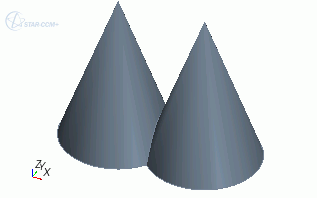

	Valid: the extrusion stops before the profile is split.

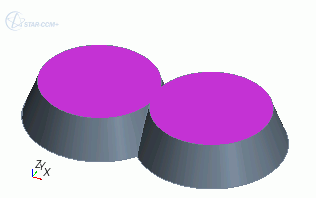

	Invalid: the profile splits due to the combination of draft angle and extrusion length.
	Valid: there is no profile.
