Setting the Material Properties

You define the phases and set the appropriate material properties.

Define the materials corresponding to each of the mixture components under the Phases node.

To define the phases and set the material properties:

Right-click the Models > Multiphase > Phases node and create a new phase.
Rename the Phase 1 node to H2O.

For the H2O phase, select the following models:


Group Box	Model
Material	Liquid
Equation of State	Constant Density

Click Close.
Create a second phase and rename it to Air.

For the Air phase, select the following models:


Group Box	Model
Material	Gas
Equation of State	Constant Density

Click Close.
Create a third phase and rename it to H2O (G).

For the H2O (G) phase, select the following models:


Group Box	Model
Material	Gas
Equation of State	Constant Density

Click Close.

If you were setting up a standard free-surface problem, only two phases would be required. However, because this problem involves cavitation, it is necessary to define a third phase for the product of cavitation, that is, water vapor. Hence, the air in the third phase is replaced with water vapor from the Simcenter STAR-CCM+ material database.

Right-click the H2O (G) > Models > Gas > Air node and select Replace with.

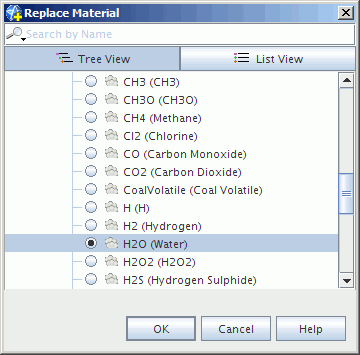

In the Replace Material dialog, expand the Material Databases > Standard > Gases node.
Activate H2O (Water).
Click OK to replace the material.

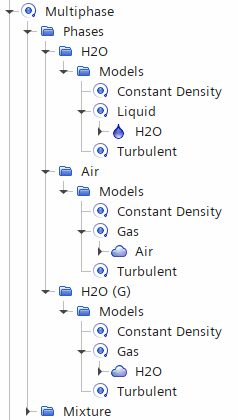

The phase model objects appear as shown below.

The default material properties for the three phases are suitable for this problem.
Save the simulation.
