Visualizing and Initializing the Solution

View the distributions of the three-phases throughout the run by creating a scalar scene.

To visualize and initialize the solution:

Right-click the Scenes node and then select New > Scalar.

The Scalar Scene 1 display appears.
In the Graphics window, right-click the scalar bar and select Volume Fraction > H2O.
Select the new Scenes > Scalar Scene 1 > Scalar 1 node.
Set Contour Style to Smooth Filled.
Click (Initialize Solution) in the top toolbar or use the Solution > Initialize Solution menu item.
Make the Scalar Scene 1 display active to check the initialization results.

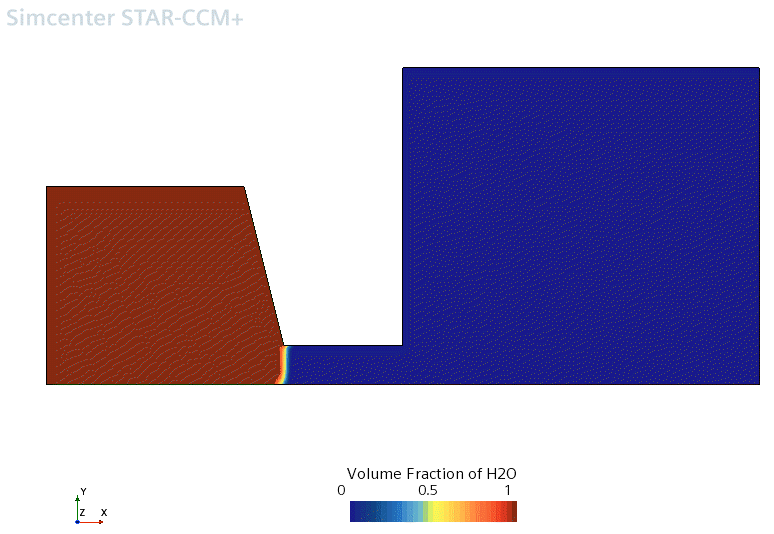

As expected, at the start of the run the left chamber is entirely filled with water. Changing the scalar function to Volume Fraction of Air shows that the right chamber and the connecting channel are entirely filled with air. A small region in which both fluids are apparently present is visible at the interface between the two fluids, but this effect is due to the coarseness of the mesh.
Save the simulation.
