Scaling the Mesh

The original mesh is not built to the correct scale and therefore requires scaling down by a factor of 1000.

To scale the mesh:

Select Mesh > Scale Mesh from the menu bar.

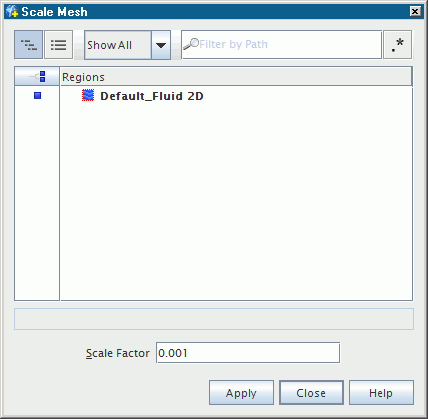

In the Scale Mesh dialog, make sure that the Default_Fluid 2D region is selected.
Enter a value of 0.001 for the scale factor.
Click Apply to scale the domain, and then click Close.
The mesh region reduces in size.

To restore the previous viewing distance for the scaled domain in the display:

Click (Reset View) in the visualization toolbar.

To verify that scaling has in fact been applied, you can perform the mesh diagnostics check and review the output values.
