Selecting the Thin Film Model

To select the Thin Film model:

In the Physics Model Selection dialog, specify a material model in the Material group.
Make appropriate selections of flow or solid models, and an energy model, depending on whether you are using the Deicing or Defogging model. If you are using Deicing, you can apply it to a fluid or a solid region. However, defogging requires a flow model for a fluid region.

The Thin Film model becomes available in the Optional Models group.

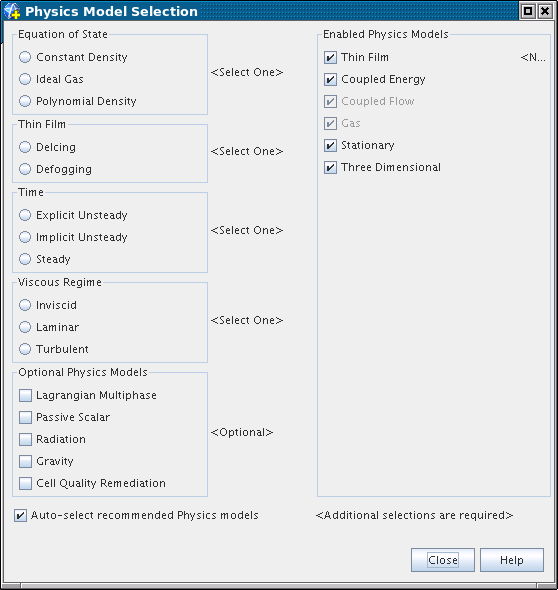

Once you activate the Thin Film model, the Deicing and Defogging models become available in the Thin Film group.

Select one of these models, depending on the type of film you are simulating.
