What Is the Defogging Model?

The Defogging model, which is made available by the Thin Film model, is a simplified approach to obtaining a defogging simulation inside a cabin windshield or surface.

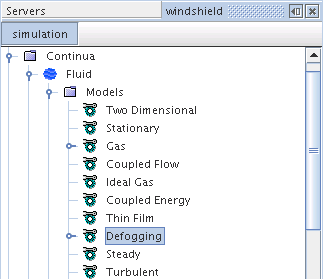

The model object can be controlled with properties and is subject to common menu items.

This object also contains the film material, which lets you work with material properties for this film.

Major hypotheses are:

The fog layer is not represented as a phase in the inner volume mesh, but is modeled using functions, thus the fog layer does not flow.
A steady state calculation is performed to initialize the convection flow field.
During the transient run, it is recommended that you leave all equations on. However, you can use a large time-step because the condensation/evaporation of the fog layer does not affect the flow field.
