What Is the Defogging Solver?

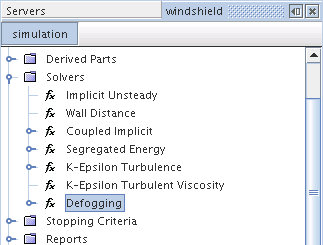

This solver, which has properties and is subject to common menu items, controls the solution of the Defogging model in all the continua for which the model is activated.

Table 1. Defogging Solver Properties
Under-Relaxation Factor	At each iteration, this property governs the extent to which the old solution is supplanted with the newly computed solution. The default value is 0.9.

Defogging Solver Expert Properties

The properties in the Expert category are designed for use in a temporary “debug” situation, at the expense of simulation accuracy and extra memory usage. It is not recommended that you change any of these properties unless you are thoroughly familiar with the discretization techniques used in Simcenter STAR-CCM+.

Reconstruction Frozen: When On, Simcenter STAR-CCM+ does not update reconstruction gradients with each iteration, but rather uses gradients from the last iteration in which they were updated. Activate Temporary Storage Retained in conjunction with this property. This property is Off by default.
Reconstruction Zeroed: When On, the solver sets reconstruction gradients to zero at the next iteration. This action means that face values used for upwinding (Eqn. (905)) and for computing cell gradients (Eqn. (917) and Eqn. (918)) become first-order estimates. This property is Off by default. If you turn this property Off after having it On, the solver recomputes the gradients on the next iteration.
Solver Frozen: When On, the solver does not update any quantity during an iteration. It is Off by default. This is a debugging option that can result in non-recoverable errors and wrong solutions due to missing storage. See Finite Volume Solvers Reference for details.
Temporary Storage Retained: When On, Simcenter STAR-CCM+ retains additional field data that the solver generates during an iteration. The particular data retained depends on the solver, and becomes available as field functions during subsequent iterations. Off by default.
