Exporting the Collection of Materials

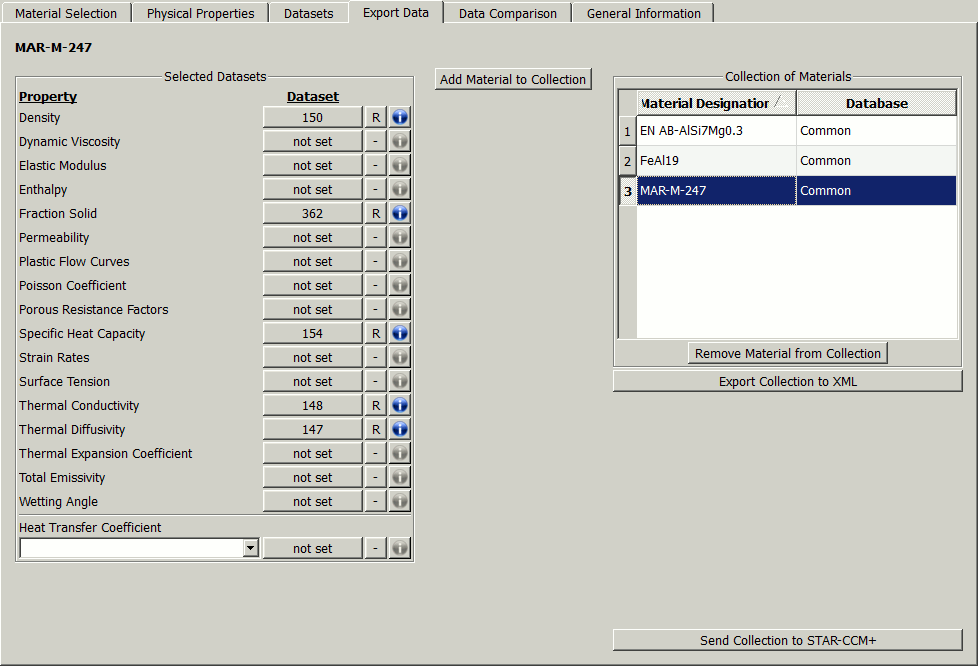

When you have prepared the appropriate collection of materials, you can export the materials and the selected physical properties from the Casting Material Database to Simcenter STAR-CCM+.

To export the collection of materials directly to Simcenter STAR-CCM+:

Click Send Collection to Simcenter STAR-CCM+.

The Casting Material Database Editor closes. The material collection is saved as an XML file with a predefined name (ExportToStarCCM_YYMMhhmmss.xml (Yr,Month,hr,min,sec)) under the current working directory.

Simcenter STAR-CCM+ automatically reads the exported material database and loads it under the Tools > Material Databases > Selected_Casting_Materials node.

To export the collection of materials to an .xml file that you can import later:

Click Export Collection to XML.
In the Save File dialog, specify the appropriate file name and location and then click Save.
The Casting Material Database Editor remains open. You can import the exported file into the Simcenter STAR-CCM+ Material Database later.

See Using Imported Casting Materials and Properties in STAR-CCM+.
