Projecting Entities to the Active Sketch

You can project sketch entities from other sketches onto the active sketch.

When projecting sketch entities in 3D-CAD, you can chose from the following options:

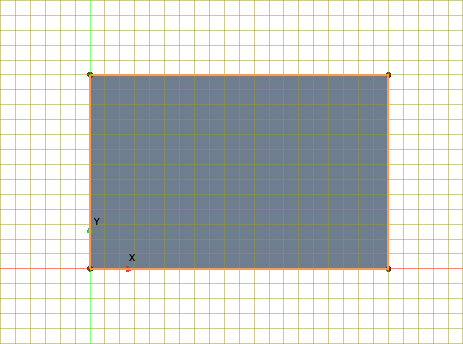

Project to sketch
Project to sketch As construction

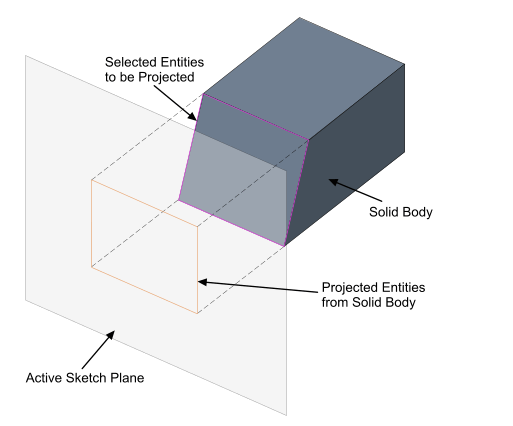

Additionally, you can project edges and faces from other bodies to the active sketch.

To project entities:

Select the desired edges or faces that you wish to project.
Right-click on one of the selections and select Project to sketch or Project to sketch As construction.

The selected entities (or in the case of a face, the edges of the face) are projected onto the active sketch. Projected entities are displayed in orange for easier identification.

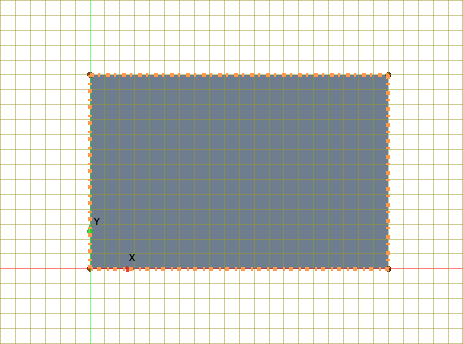

Project to sketch As construction entities are displayed in dotted orange lines.

Note	The projected entities are associative, meaning that if you modify the original entity, the projection is automatically updated to match the modification.

You can use projected entities with other sketch entities in the current sketch. You can undo or redo the project feature operation using the appropriate buttons in the Sketch in-place dialog.

You cannot move or modify projected entities. You can, however, create a duplicate of the projected entities and modify those.

Note	The duplicated entities are not associated with the original source.
