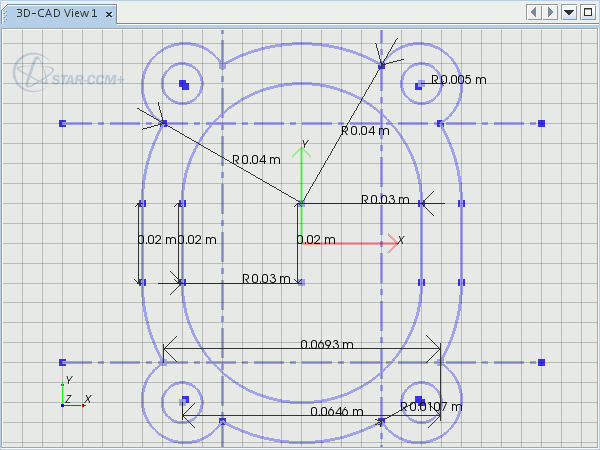

Dimensioning Sketches

Dimensions are used to control sizes, distances, and angles in a sketch.

When you apply a dimension to one or more sketch entities, it fixes the size, distance, or angle to a specific value. The value can be a numerical quantity, or specified using design parameters, and can only be changed by editing the dimension.

Note	There is a numerical limit to the geometrical precision of 3D-CAD models. Do not apply dimensions less that 1 micron (1.0E-6 m).

To dimension a sketch:

In the 3D-CAD view scene, right-click on the desired sketch entities and select the type of dimension that you want to apply. See Dimension Types.
Enter the dimension values in the Dimension dialog. You can specify the units by typing them directly in the textbox.
To expose the dimension as a design parameter, activate Expose parameter?
Click OK.

If necessary, you can hide dimensions in the sketch to give you a clearer view of the sketch geometry. Alternatively, you can reposition the dimension.
