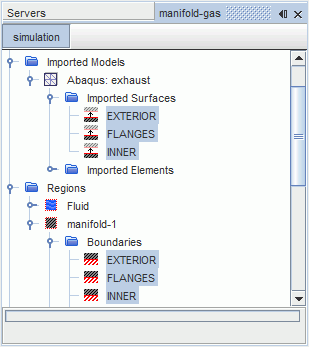

What Is the Imported Surfaces Node?

When a CAE model is imported, Simcenter STAR-CCM+ automatically recognizes the surfaces that have been defined in the CAE model, and defines corresponding boundaries.

Each imported surface is also represented by a node within the Imported Surfaces node.

Imported Surfaces Node Properties


Imported Surfaces	Specifies the number of surfaces imported into Simcenter STAR-CCM+ (Read-only).

[Imported Surface] Properties


Index	Identifies the surface with a unique number (Read-only).
Boundaries	Specifies the region boundaries that are associated with the imported surface (Read-only).

The [Imported Surface] nodes can be selected in the relevant dialogs when mapping/exporting solution data from Simcenter STAR-CCM+ to the third-party CAE package, or when importing/mapping CAE model solution data to the Simcenter STAR-CCM+ model. These processes are used for file-based coupling and are carried out using the pop-up menu on the imported CAE model node.
