Condition
The Condition operation is a composite operation that forks to two child sequences on the basis of a predicate. In programming terms, the condition operation behaves as an if-then-else construct.
The True child sequence is executed if the condition predicate evaluates to true; otherwise the False child sequence is executed. Child sequences are nested operations that can contain any of the available operation types.
Properties
- Predicate Type
- Defines the predicate type as one of:
- Stopping Criterion Predicate (default)
- Expression Predicate
- Update Event Predicate
To define the predicate, refer to Predicates.
Child Nodes
- True

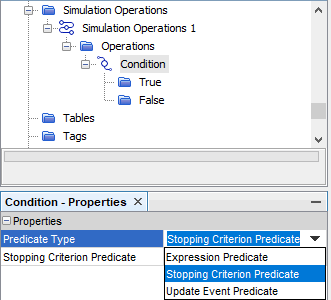

- Contains the sequence to execute when the selected predicate evaluates to true. Create this sequence by right-clicking the node and choosing the operations to add:
- False
- Similar to the sub-node True, here you create a new sub-workflow when the selected predicate evaluates to be false.
