Set Active Stage

The Set Active Stage allows you to change the stage in the simulation sequence.

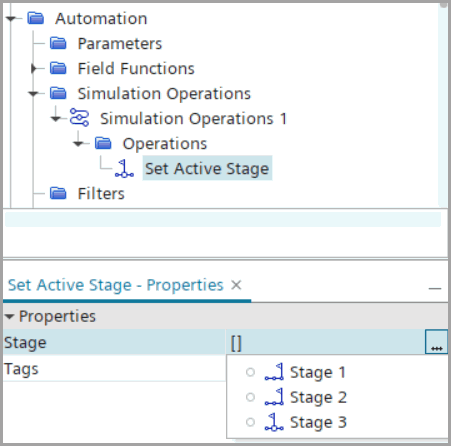

In a simulation sequence, you can activate any of the stages which are defined under Automation > Stages.

Properties

Stages: Activates the selected Stage in the sequence.
