Run Reactor Network

The Run Reactor Network operation executes a reactor network simulation—this clusters computational mesh cells into a small number of reactors and calculates a detailed chemistry solution on them.

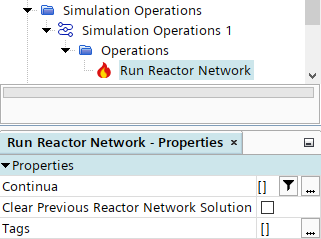

The Run Reactor Network node allows you to select the Continua for which to run the reactor network. It also provides the option to Clear Previous Reactor Network Solution. Make sure that the simulation does not contain settings that are incompatible with the Reactor Network model.

See Reactor Network Model Reference.

To execute the Run Reactor Network operation, you require the Reactor Network model in the relevant physics continuum.
