Solve Normal Modes

The Solve Normal Modes operation runs the Solid Stress Normal Modes solver—which calculates the normal modes of solid structures in solid stress simulations.

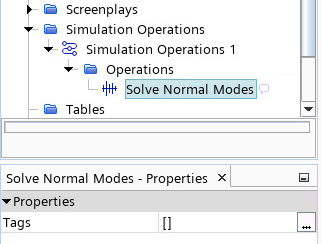

The Solve Normal Modes operation has no unique properties. Make sure that the simulation does not contain settings that are incompatible with the Solid Stress Normal Modes Solver.

See Solid Stress Normal Modes Solver Properties.

To execute the Solve Normal Modes operation, you require the Solid Stress Normal Modes model in the relevant physics continuum.

To tabulate the results after executing the simulation operations, right-click the Solvers > Solid Stress Normal Modes > Normal Modes Results node and select Export..., Extract, or Tabulate....
