Selecting a Reference Temperature Evaluation Option

When you map heat transfer coefficients from Simcenter STAR-CCM+ to an imported CAE model, you can select the method by which Simcenter STAR-CCM+ evaluates the heat transfer coefficient and reference temperatures.

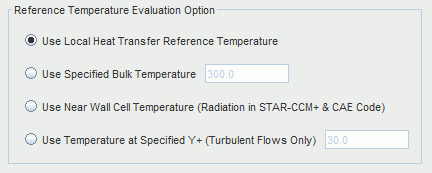

When Data to map is set to Local Heat Transfer Coefficient, the Reference Temperature Evaluation Option box appears within the Map Imported Model Data dialog.

You can choose the method by which Simcenter STAR-CCM+ evaluates the reference temperature by selecting one of the four options available. The particular form of heat transfer coefficient that is mapped will depend on the reference temperature chosen. For the first three options, the mapped heat transfer data will be stored in the field function Mapped Local Heat Transfer Coefficient.

Local heat transfer reference temperature
This option allows you to map the local heat transfer reference temperature, which results in the creation of the Mapped Local Heat Transfer Reference Temperature field function. With this option, Simcenter STAR-CCM+ will base its mapping on the Local Heat Transfer Coefficient.
Specified bulk temperature
This option allows you to specify a single temperature to use as the reference temperature. Selecting this option results in the creation of the Mapped Bulk Temperature field function. Simcenter STAR-CCM+ will base its mapping on the Heat Transfer Coefficient.
Near wall cell temperature
This option allows you to map the cell-based reference temperature values. It results in the creation of the Mapped Cell Based Temperature field function. Simcenter STAR-CCM+ will base its mapping on the Local Heat Transfer Coefficient.
Specified y+ temperature
This option is for turbulent flows and allows you to map reference temperatures at a specified y+ value. This option is preferred over the local heat transfer reference temperature. Selecting this option results in the creation of the Mapped Heat Transfer Reference Temperature User Y+.

With this option, Simcenter STAR-CCM+ will base its mapping on the Specified y+ Heat Transfer Coefficient, and will store the mapped heat transfer data in the field function Mapped Specified y+ Heat Transfer Coefficient.

Further discussion is provided in the section, Exchanging Heat Transfer Coefficients.
