Analyzing the Results

View the results of the converged simulation and calculate the junction-to-ambient thermal resistance.

After the run is finished, examine the velocity and temperature displays:

Click the Electronics Cooling 1 tab at top of the Graphics window.

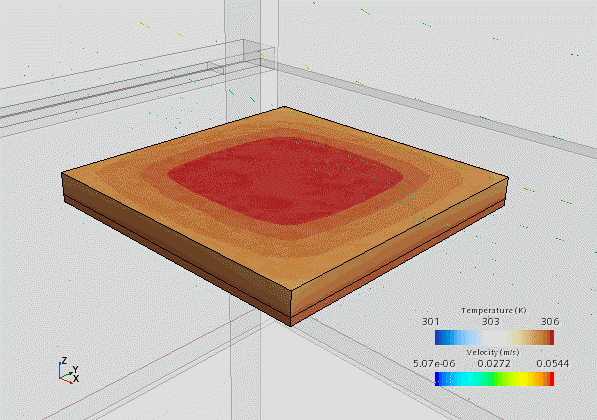

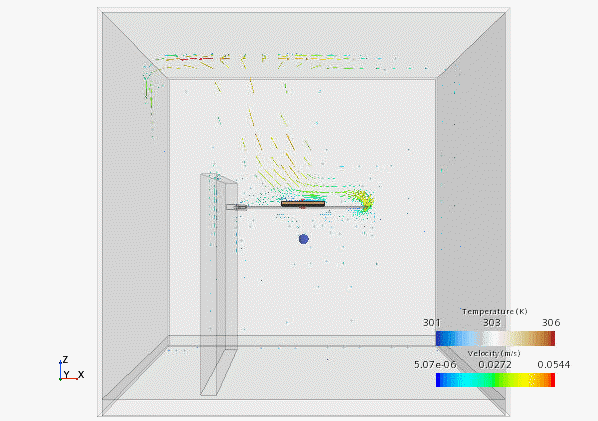

The following screenshots display the air flow inside the chamber and the temperature of the package.

Determine the junction-to-ambient thermal resistance

θ_{J A}

Right-click the Results > Reports > Probe Temperatures node and select Tabulate.

Within the Tabular Data dialog, the following data are displayed:


QP/QPS	Field	Minimum/Maximum/Average
Junction	Temperature	306.112 K
Thermocouple	Temperature	300.536 K

Calculate $θ_{J A}$ as:
$θ_{J A} = \frac{T_{J} - T_{A}}{P_{H}} = \frac{306.112 K - 300.536 K}{1.0 W} = 5.576 \frac{K}{W}$
