Surface-to-Surface Radiation: Thermal Insulator

This tutorial incorporates gray thermal radiation in a Simcenter STAR-CCM+ simulation.

All conditions and properties are defined using the Simcenter STAR-CCM+ GUI and solved using the segregated solver. The results are displayed using the post-processing tools available in Simcenter STAR-CCM+.

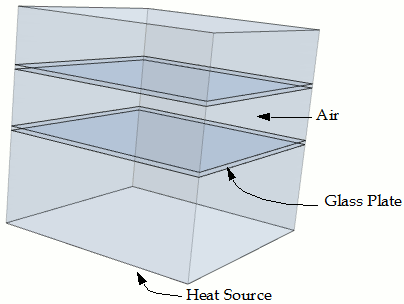

The starting point for the tutorial is a three-dimensional hexahedral grid representing two glass plates within a rectangular enclosure containing air, as shown in the Figure below. Built with pro-STAR, the grid includes interfaces between the glass plates and surrounding air. The imported file contains information about the geometry, mesh, boundaries, and materials present in the problem.

The analysis covers the following heat transfer modes:

Conduction
Gray thermal radiation
