Multi-Part Solid: Graphics Card Cooling

This tutorial demonstrates how you can model multiple solid parts in a single continuum using the Multi-Part Solid physics model.

This tutorial also demonstrates how to apply different heat sources on parts in a single region using Parts-Based Profiles.

The geometry for this simulation consists of a simplified graphics card inside a PC tower case. Two fans, represented by fan interfaces, drive the flow inside the case.


Index	Description
1	PC Tower Case
2	Inlet Fan
3	Inlet
4	Graphics Card
5	Outlet Fan
6	Outlet

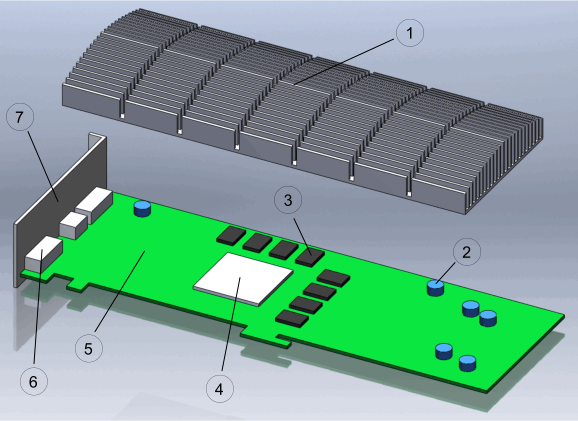

The graphics card and its part materials are shown in the following diagram.


Index	Description	Material
1	Heat Sink	Aluminum
2	Capacitor	Alumina
3	Memory Chip	Silicon
4	GPU Chip Casing	Aluminum
5	Printed Circuit Board	FR-4 + Copper
6	Connector Port Block	Aluminum
7	Back Plate	Aluminum

Using multi-part solids and per-part values requires that you import the geometry as parts. From these imported parts, you generate a mesh that has polyhedral cells and prims layers. Thin parts of the geometry are meshed using the thin mesher.
