Creating and Positioning the Components

Create and place the components of the test rig, the chip package, and the chamber using templated QuickParts.

Within the Electronics Cooling Toolset, a QuickPart allows you to define the geometry, placement, and physics of a component in one step. For more information, see QuickParts.

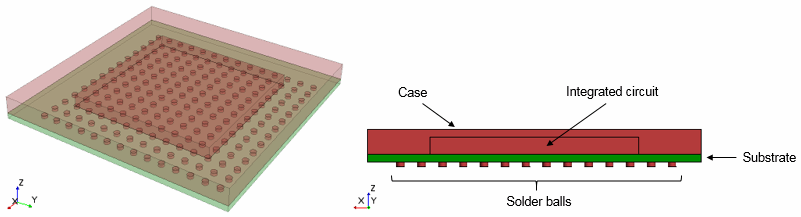

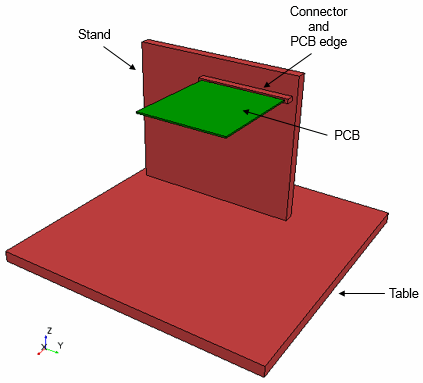

The next steps describe the setup of the following components:
