Preparing the On-The-Fly FW-H Analysis

The two key steps in preparing Simcenter STAR-CCM+ for a Ffowcs Williams-Hawkings analysis are to define the FW-H Surfaces and then define the FW-H Receivers. FW-H Receivers are points at specific distances from the noise sources.

To choose the FW-H models:

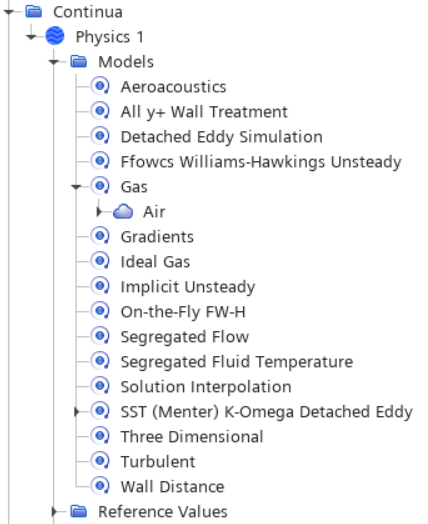

For the physics continuum, Continua > Physics 1, select the following models, in order:


Group Box	Model
Optional Models	Aeroacoustics
Aeroacoustics Models	Ffowcs Williams-Hawkings Unsteady
FW-H Unsteady Models	On-The-Fly FW-H

Select the FW-H Receivers node and set the following properties:


Property	Setting
Far-Field Density	1.18 kg/m^3
Far-Field Speed of Sound	347.2 m/s
