Running 1D Pipeline Simulation using Manifold FMU

In Simcenter Flomaster, you run the simulation in steady state to check the pressure different between inlets and outlet of the two junctions.

Ensure that the modified Ship to Shore Model network is open.

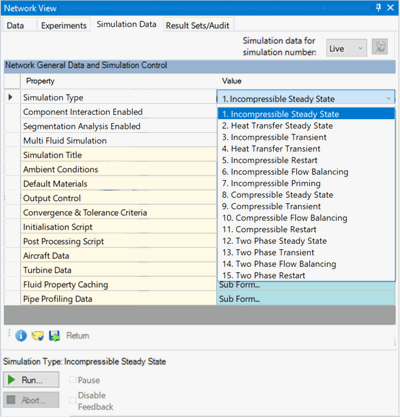

In the Network View, select the Simulation Data tab.
Select the Simulation Type node and set it to 1. Incompressible Steady State.
At the bottom of the Network View, click Run .
After the run finishes, save the simulation.
