Creating a Field Function for the Grid Velocity

A radial velocity is to be set at the cylinder wall using a field function based on the axial position.

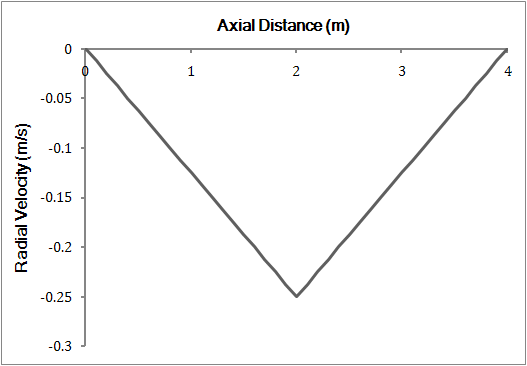

The variation of the radial velocity with axial distance is shown in the figure below:

The equation for this profile is:

v_{r} = {\begin{matrix} - \frac{1}{8} x_{z} for x_{z} < 2 \\ - \frac{1}{8} (4 - x_{z}) for x_{z} \geq 2 \end{matrix}

where $v_{r}$ is the radial velocity in m/s and $x_{z}$ is the z (or axial) coordinate of the face centroid in m.

The field function for this profile is implemented as follows:

Right-click the Automation > Field Functions node and select New > Vector.
Rename the User Field Function 1 node to Cylinder Radial Velocity.

Select the Cylinder Radial Velocity node and set the following properties:


Property	Setting
Function Name	CylinderRadialVelocity
Dimensions	Velocity
Definition	`[(($$Position("Cylindrical 1")[2] < 2) ? -0.125$$Position("Cylindrical 1")[2] : -0.125(4-$$Position("Cylindrical 1")[2])), 0, 0]`

Note: the function $$Position("Cylindrical 1") returns a cartesian vector of the position coordinates in local coordinate system Cylindrical 1; the subscript operator [] is appended to access a single component of the position vector (with an index of [0], [1], or [2]).
