Updating 3D-CAD Parts

After making changes in a 3D-CAD model, update any existing geometry parts that are based on the 3D-CAD model.

Update leaf-level parts that are created from a 3D-CAD model when either of the following occurs:

the originating 3D-CAD model was edited
the design parameters on which the original 3D-CAD model bodies are based on change for any reason.

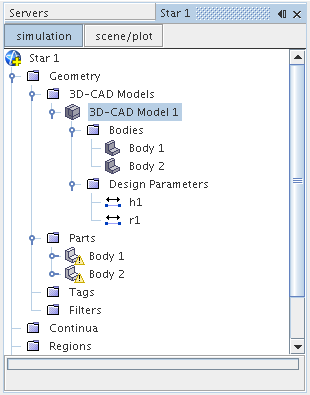

In the latter instance, 3D-CAD model parts are flagged with the “out-of-date” badge once the 3D-CAD model bodies have been updated themselves after the design parameter change has been made. Examples of two out-of-date flagged parts are shown below:

In the above example, the two bodies (Body 1 and Body 2) belonging to the 3D-CAD Model 1 node were updated after the design parameters h1 and r1 were changed.

In order to obtain the correct geometry, update Body 1 and Body 2 in the Parts node.

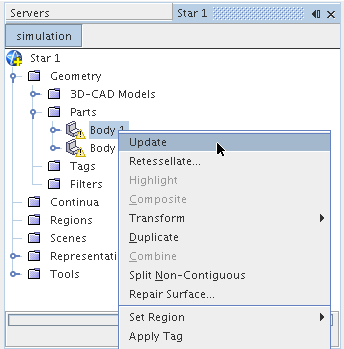

This update can be done by selecting the parts node of interest, right-clicking, and selecting Update from the pop-up menu:

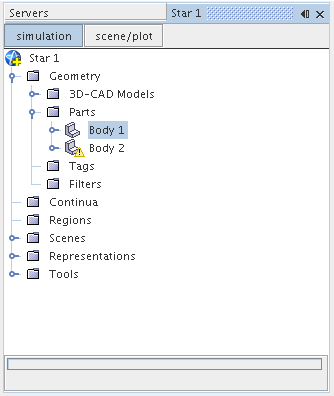

The geometry part is now updated with the correct dimensions and retessellated. The “out-of-date” warning badge is removed, indicating that the part is now up-to-date.

Multiple part selections can be updated using this method.
