Selecting the Lagrangian Phase Models

Create the Lagrangian phase and select the appropriate phase models.

The Lagrangian Multiphase model requires the selection of further models representing the characteristics of the Lagrangian phase.

To create the Lagrangian phase and select the phase models:

In the Physics 1 continuum, right-click the Models > Lagrangian Multiphase > Lagrangian Phases node and select New > Free-stream Phase.

For the Phase 1 phase, select the following models in order:


Group Box	Model
Enabled Models	Residence Time (Pre-selected)
Particle Type	Material Particles Pressure Gradient Force (Selected automatically) Spherical Particles (Selected automatically)
Material	Solid
Equation of State	Constant Density
Optional Particle Forces	Drag Force Virtual Mass
Optional Models	Turbulent Dispersion Erosion
Track Sampling	Track File

Click Close.

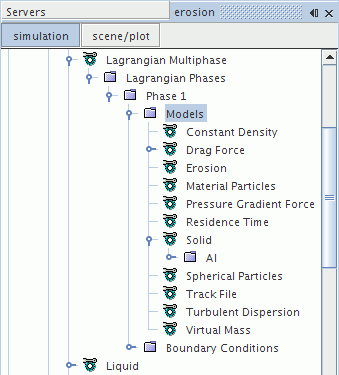

The Phase 1 phase node appears as shown below:
Save the simulation.
