Setting the Erosion Model

Select the appropriate erosion model.

When modeling erosion using CFD methods, it is necessary to select an erosion model that is based on a knowledge of the material undergoing erosion and the conditions under which the erosion is taking place. It is also important to appreciate that erosion modeling does not necessarily predict material loss with a consistent degree of accuracy and it is not recommended to estimate component lifetimes using CFD modeling alone. If estimating component lifetime is important, then additional experimental validation should be obtained to assess the effectiveness of the erosion model under appropriate conditions.

In this tutorial, use the Oka model initially, and use an additional user-defined model afterwards for comparison. The default coefficients that are given for the Oka model in Simcenter STAR-CCM+ are for the sand erosion of carbon steel.

To set the erosion model:

In the Continua > Physics 1 > Models > Lagrangian Multiphase > Lagrangian Phases > Phase 1 > Boundary Conditions > Wall > Physics Values node, select the Impact Wear node and set Method to Oka.

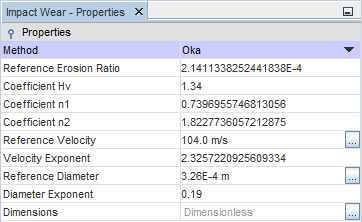

Review the model properties.
Save the simulation.
