Setting the Lagrangian Phase Boundary Conditions

Define the Lagrangian phase boundary conditions.

The Lagrangian Phase Boundary Conditions are used to define the behavior of particles and droplets when they hit a solid boundary. Impact behavior can be defined for the following boundary types:

Baffle
Contact (interface)
Wall

In this simulation, it is only necessary to define the boundary interaction models for the Wall boundary types, as there are no baffles or contact interfaces present. Parameters for the Erosion model are made in this section.

The field functions that you created in the previous section are now applied to the Lagrangian Phase Boundary Conditions.

To set the Lagrangian phase boundary conditions:

Edit the Physics 1 > Models > Lagrangian Multiphase > Lagrangian Phases > Phase 1 > Boundary Conditions > Wall node and set the following properties:


Node	Property	Setting
Physics Conditions > Mode	Active Mode	Rebound

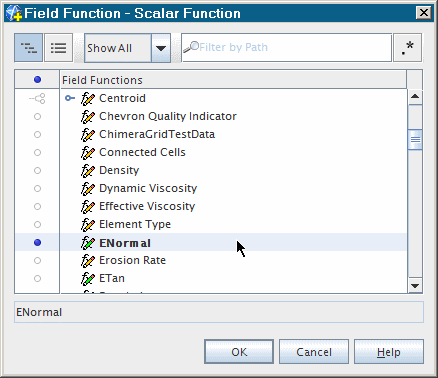

Physics Values > Normal Restitution Coefficient	Method	Field Function
Physics Values > Normal Restitution Coefficient	Scalar Function	ENormal
Tangential Restitution Coefficient	Method	Field Function
Tangential Restitution Coefficient	Scalar Function	ETan

Save the simulation.
