Running the Simulation

Preparation of the simulation is now complete, and you can run the simulation.

When you initialize a VOF simulation that uses the Free Surface Mesh Refinement AMR criterion, the mesh is refined and the interface is resolved immediately, before the first time-step. This is equivalent to activating Refine in Solution Initialization in other AMR criteria.

To initialize and run the simulation:

In the toolbar, click (Initialize Solution).

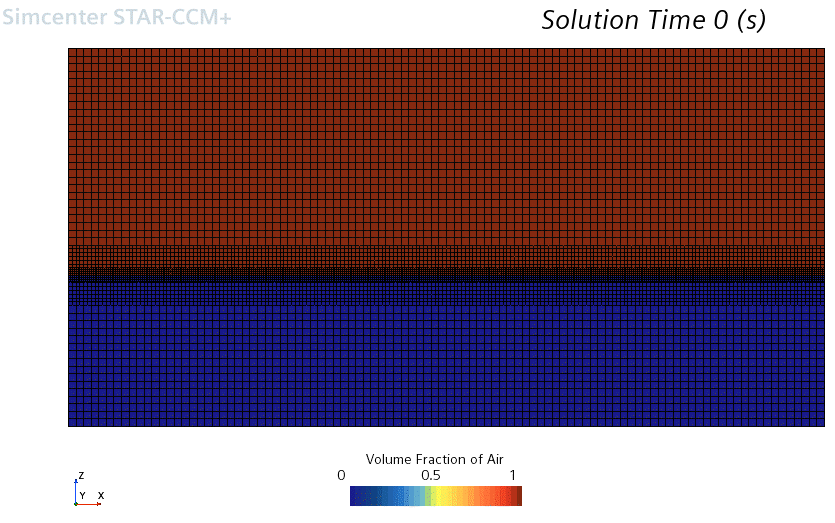

View the Volume Fraction scene, and examine the initial distribution of phases and the refined mesh at the interface.

To examine the total mass of water at the start of the simulation :

Right-click the Reports > Water Mass node and select Run Report.
The report is printed to the output window. The total mass of water at the start of the simulation is approximately 0.99756 kg.
To run the simulation, click (Run) in the Solution toolbar.

The solution progress is displayed in the Output window. The Residuals display is created automatically in the Graphics window and shows the progress of the solvers.

View the simulation progress in the Volume Fraction scene. Note how the mesh resolution near the free surface changes as the interface moves.
When the simulation has finished running, save it.
