Generating the Volume Mesh

The meshing models and mesh reference values for this simulation are already defined.

To generate the volume mesh:

In the Mesh Generation toolbar, click (Generate Volume Mesh).

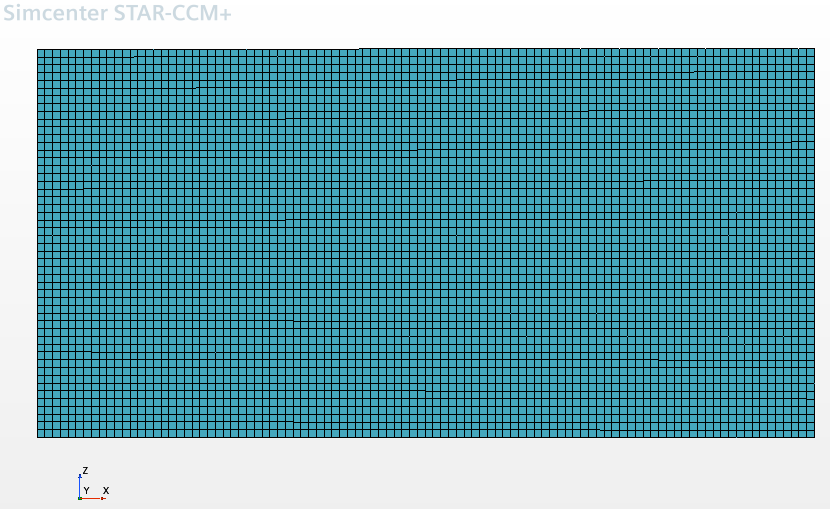

To visualize the mesh, create a mesh scene.
In the toolbar, click (Save-Restore-Select Views) and select Views > -Y > Up +Z to display the mesh.

This mesh is built with the coarsest sizing possible before the solver is unable to adequately resolve the free surface. By using AMR, the mesh can remain coarse in areas distant from the free surface, and be refined only in those areas where a fine resolution really matters.
Save the simulation.
