Setting Boundary Conditions and Values

The default boundary conditions on the wall and outlet boundaries are suitable for this analysis so the only user specifications required are on the inlet boundary. A fixed velocity of 20 m/s and appropriate turbulence parameters need to be specified there.

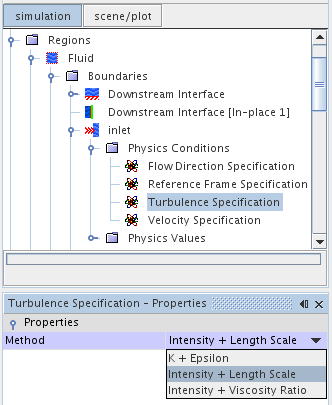

Select the Regions > Fluid > Boundaries > inlet > Physics Conditions > Turbulence Specification node and set the Method to Intensity + Length Scale.

The boundary values for turbulence can now be set.

Edit the Inlet > Physics Values node and set the following boundary conditions:


Node	Property	Value
Turbulence Intensity	Value	0.05
Turbulence Length Scale	Value	0.005 m
Velocity Magnitude	Value	20 m/s
