Loading the Starting Simulation File

You are provided with a starting simulation file that contains the battery geometry— plate with coolant fluid inside, one initial battery cell, and an initial set of tabs and busbars—and pre-defined surface pattern mesh operations. You use these pattern mesh operations later on to complete the battery pack geometry.

You are advised to run the tutorial in parallel to reduce the meshing time and the runtime.

To load the starting simulation file:

Start up Simcenter STAR-CCM+ in a manner that is appropriate to your working environment and select File > Load.
In the Load a File dialog:
1. Click Browse.
2. In the Open dialog, navigate to the battery folder of the downloaded tutorial files and select batteryPack_start.sim.
3. Click Open, then OK.

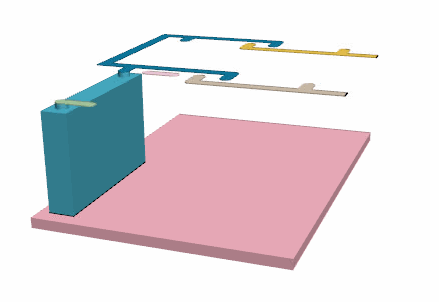

Open the Geometry scene. The battery geometry parts are displayed in the open scene.
Save the simulation as batteryPack_run.sim.
