Setting Stopping Criteria

Set the appropriate stopping criteria for the simulation.

To set the stopping criterion:

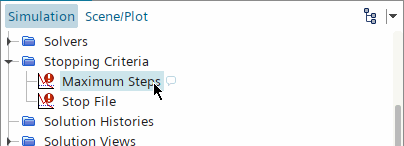

Select the Stopping Criteria > Maximum Steps node.
Set the Maximum Steps to 500.
Save the simulation.
