Modifying the Boiling Model Parameters

The Rohsenow empirical correlation is used to calculate the surface heat flux due to boiling. You specify the two parameters of this correlation, namely C_qw and n_p.

In Simcenter STAR-CCM+, the [963] empirical correlation is used to calculate the surface heat flux due to boiling. The two parameters of this correlation, namely C_qw and n_p, are specified. These empirical coefficients vary with the liquid-surface combination and the surface finish. [964] provides some typical parameters for various conditions.

Assume that the bottom wall is a polished copper and specify appropriate values for C_qw and n_p parameters.

To modify the Boiling model parameters:

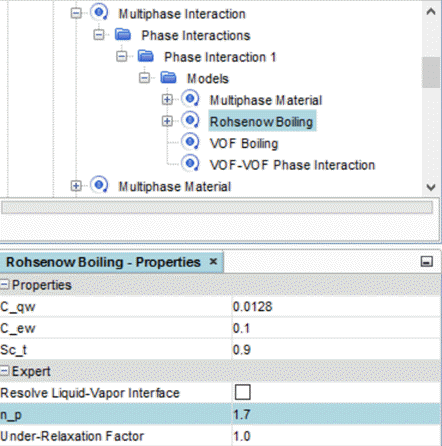

Select the Continua > Boiler > Models > Multiphase Interaction > Phase Interaction 1 > Models > Rohsenow Boiling node and set C_qw to 0.0128 and n_p to 1.7.

Leave the remaining parameters at their default values.
Save the simulation.
