Scaling the Mesh

The original mesh is not built to the correct scale and therefore requires scaling down by a factor of ten.

To scale the mesh:

Select Mesh > Scale Mesh from the menu bar.

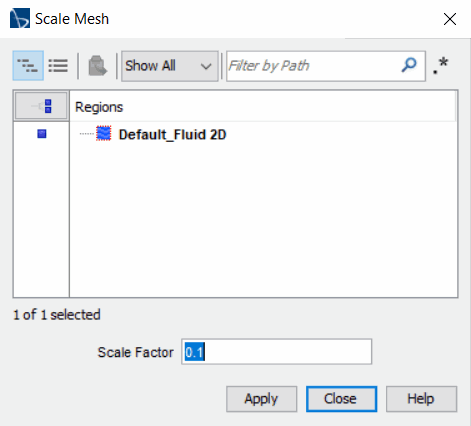

In the Scale Mesh dialog:
1. Ensure that the Default_Fluid 2D region is selected.
2. Set the Scale Factor to 0.1.
3. Click Apply to scale the domain and then click Close.
When the Apply button is clicked, the mesh region reduces in size.
To restore the previous viewing distance, click (Reset View) in the visualization toolbar.
Select Mesh > Diagnostics from the menu bar.
In the Mesh Diagnostics dialog, click OK.

The extent of the geometry is as given below:

x: [-4.0000e-01, 5.0000e-01] m

y: [-5.0586e-18, 4.0000e-01] m

z: [0.00000e+00, 0.0000e+00] m
