Setting the Material Properties

Define the phases and set the appropriate material properties. Define the materials corresponding to each of the mixture components under the Phases node.

To define the phases and set the material properties:

In the Boiler continuum, select the Models > Multiphase > Phases node and create a new phase.
Rename the Phase 1 node to H2O.

For the H2O phase, select the following models:


Group Box	Model
Material	Liquid
Equation of State	Constant Density

Click Close.
Create a second phase and rename it to H2O (G).

For the H2O (G) phase, select the following models:


Group Box	Model
Material	Gas
Equation of State	Constant Density

Click Close.

The default gas must be replaced with water from the Simcenter STAR-CCM+ material database.

Right-click the H2O (G) > Models > Gas > Air node and select Replace with.

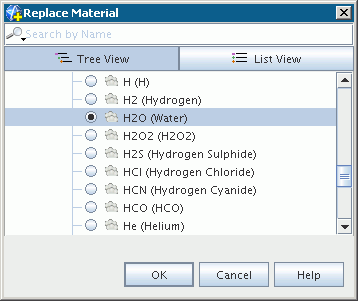

In the Replace Material dialog, expand the Material Databases > Standard > Gases node.
Activate H2O (Water).
Click OK to replace the material.

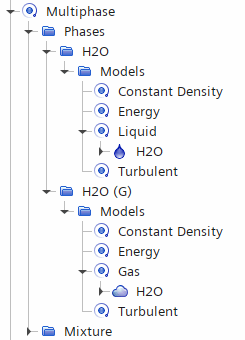

The phase model objects appear as shown below.

The default material properties for the two phases are suitable for this problem.
Save the simulation.
