Selecting the Physics Models

Physics models define the primary variables of the simulation, including pressure, temperature, velocity, and what mathematical formulation is used to generate the solution.

In this example, the flow is turbulent and the problem involves multiphase flow and boiling. Two fluids (water and water vapor) are required for the analysis. However, since these fluids occupy the same domain, only one continuum and one region are required to set up the simulation. By default, a continuum that is called Physics 1 2D is created when the mesh is converted to two-dimensional.

To select the physics models:

Rename the Physics 1 2D node to Boiler.

For the physics continuum, Continua > Boiler, select the following models in order:


Group Box	Model
Enabled Models	Two Dimensional (Pre-selected)
Time	Implicit Unsteady
Material	Multiphase Multiphase Interaction (selected automatically)
Multiphase Model	Volume of Fluid (VOF) Segregated Flow (selected automatically) Gradients (selected automatically)
Viscous Regime	Turbulent Reynolds-Averaged Navier-Stokes (selected automatically)
Reynolds-Averaged Turbulence	K-Epsilon Turbulence Realizable K-Epsilon Two-Layer (selected automatically) Wall Distance (selected automatically) Two-Layer All y+ Wall Treatment (selected automatically)
Optional Models	Segregated Multiphase Temperature Gravity

Click Close.

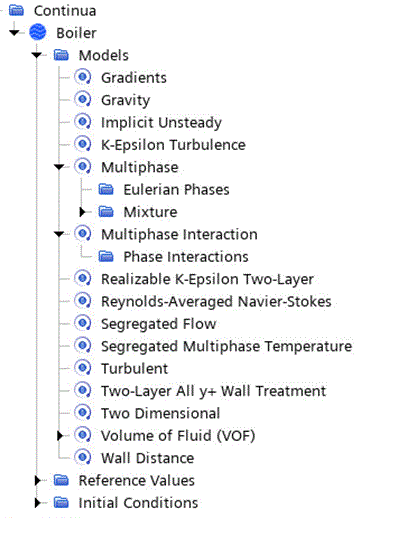

To review the models, open the Boiler > Models node.
Save the simulation.
