Scaling the Mesh

The imported grid uses units that differ from those in Simcenter STAR-CCM+. To compensate, scale the mesh.

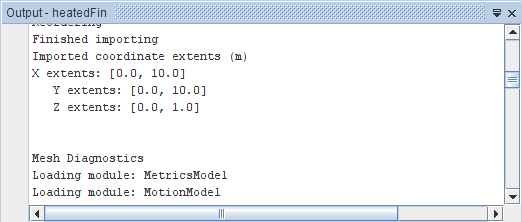

The original grid was built using centimeters as a length unit, but no scaling factor was applied when the grid was saved to the ccm file. The current dimensions of the mesh regions are already available from the mesh import process and are displayed in the Output window.

The output shows that the mesh regions extend from 0 to 10.0 in the x-direction, 0 to 10.0 in the y-direction and 0.0 to 1.0 in the (now defunct) z-direction. Without any further action, Simcenter STAR-CCM+ interprets these values as specified in meters. Therefore, scale the region by a factor of 0.01 so that the dimensions are correctly specified.

To scale the region, select Mesh > Scale Mesh from the menu bar.
In the Scale Mesh dialog, set the Scale Factor to 0.01 for the fluid and solid regions.
Click Apply.
The mesh region reduces in size.
Click Close.
To restore the previous viewing distance for the scaled domain in the display, click (Reset View) in the toolbar.
To verify that scaling has in fact been applied:
1. Select Mesh > Diagnostics from the menu bar.
2. In the Mesh Diagnostics dialog, click OK for all regions.
Check and review the output values.
