Importing the GT-SUITE Material Properties

Create a material database and import the material properties from the GT-SUITE simulation.

The file CFDCoupling_Setup.chemkin_GT.dbs contains a database of material properties from the GT-SUITE simulation. You can import these properties into Simcenter STAR-CCM+, so that you use identical materials in both codes.

GT-SUITE v2022 currently uses a non-standard comment character in the chemkin material database file. To make sure that Simcenter STAR-CCM+ can read the material properties from this file, first edit the file in a text editor:

Note	If you have downloaded the CFDCoupling_Setup.chemkin_GT.dbs file from the tutorial bundle, the file is already in the standard format.

Navigate to your caseFilesGT-SUITE directory and open the CFD_Coupling_Setup.chemkin_GT.dbs file in a text editor of your choice.
In the file, replace the hash character, #, at the beginning of each comment line with an exclamation mark character, !.
Save the material properties file.

To import the GT-SUITE material properties:

Right-click the Tools > Material Databases node and select New Material Database...
Rename the matl node as GT-SUITE Materials.
Right-click the GT-SUITE Materials node, and select Import Thermodynamic and Transport Properties...
In the Open dialog, navigate to the caseFilesGT-SUITE directory, select CFDCoupling_Setup.chemkin_GT.dbs, and click Open.
In the Import Properties dialog, select Import properties for all materials and click OK.
Open the GT-SUITE Materials > Gases node.

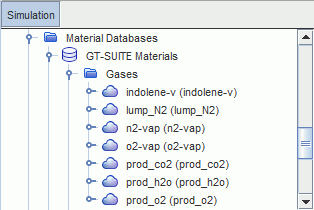

The GT-SUITE material properties appear as shown below:
