Visualizing the Normal Modes

To visualize the normal modes on a scene, you create a normal modes solution view. The Normal Modes View shows the results for each eigenmode calculated for the linear elastic structure at a stress-free state.

To create a normal modes view:

Right-click the Solvers > Solid Stress Normal Modes node and select New Normal Modes View.

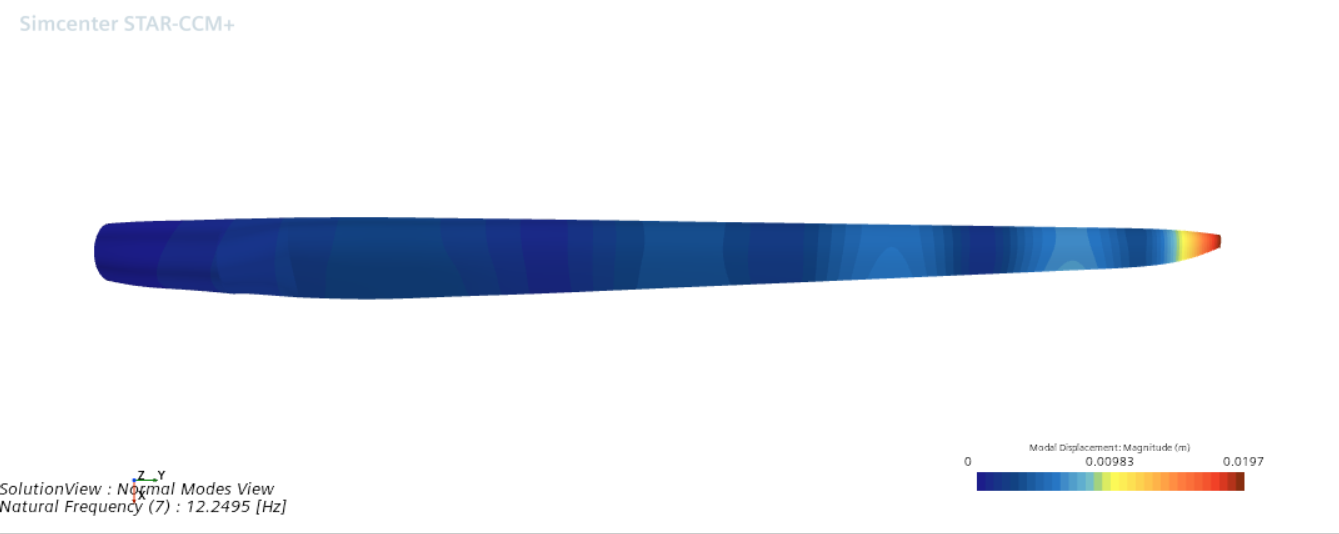

To visualize the 7th smallest eigenmode:

Select the Solution Views > Normal Modes View > Eigen Mode node and set Mode to 7.
Right-click the Scenes node and select New > Empty.
Right-click the Scenes > Scene 1 node and select New Displayer > Scalar.

Expand the Scene 1 > Scalar 1 node and set the following properties:


Node	Property	Value
Scalar 1	Representation	Normal Modes View
Parts	Parts	Regions > Blade and Regions > Spar
Scalar Field	Function	Modal Displacement > Magnitude

In the vis toolbar, click (Save-Restore-Select Views) and select Views > +Z > Up -X.
