Defining the Water and Air Phases

Using the VOF multiphase model requires that you create Eulerian phases for water and air.

To define the water and air phases:

In the Physics 1 continuum, right-click the Models > Multiphase > Phases node and create a new phase.
Rename the Phase 1 node to Water.

For the new Water phase, select the following models:


Group Box	Model
Material	Liquid
Equation of State	Constant Density

Create a second phase and rename it to Air.

For the Air phase, select the following models:


Group Box	Model
Material	Gas
Equation of State	Constant Density

You leave the material properties for water and air at their default values.

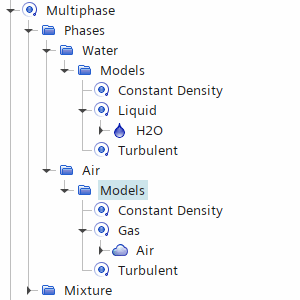

The Multiphase node contains the following models:

Save the simulation.
