Reviewing the Results

The simulation completes when the net force balance falls below 0.1 N. At this point the ship has reached its steady propulsion point and you can extract the corresponding velocity.

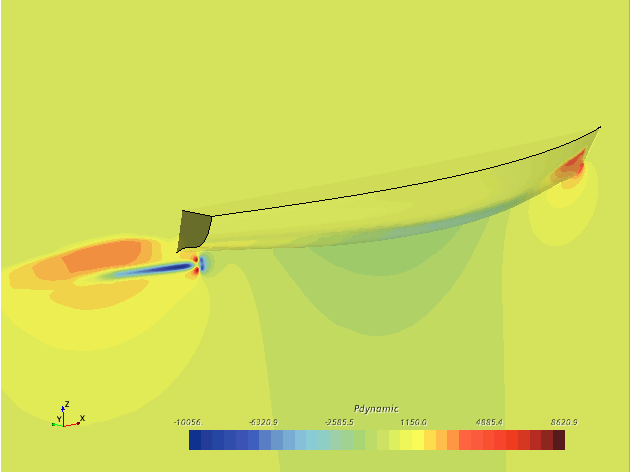

The following screenshot shows a close-up of the pressure distribution without the hydrostatic pressure component:

To find out the velocity at the steady propulsion point:

Right-click the Reports > Ship Velocity node and select Run Report.

In the Output window, Simcenter STAR-CCM+ reports the Linear Velocity as 4.53 m/s.

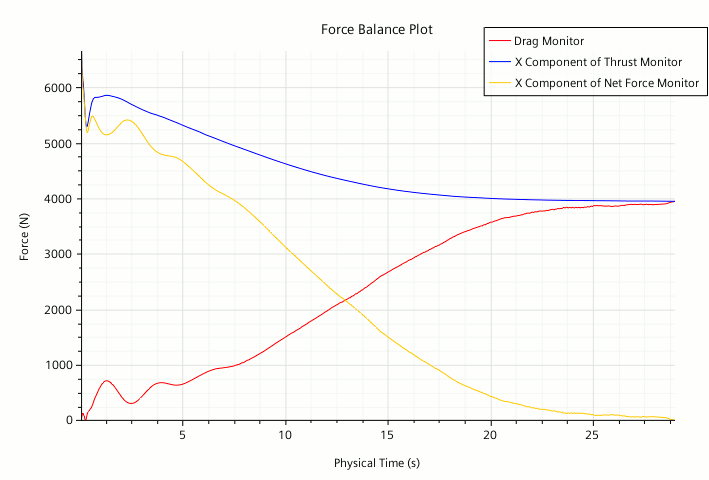

The force balance at the SPP is shown in the following screenshot:
