Selecting the Physics Models

Physics models define the primary variables of the simulation, including pressure, temperature, velocity, and what mathematical formulation is used to generate the solution.

The multiphase turbulence models are available for selection once the multiphase flow and material models have been selected.

To select the physics models:

For the physics continuum, Continua > Physics 1, in the Enabled Models group box, deactivate Two-Dimensional.

Select the following models in order:


Group Box	Model
Space	Axisymmetric
Time	Steady
Material	Multiphase Multiphase Interaction (Selected automatically)
Multiphase Model	Eulerian Multiphase (EMP) Gradients (Selected automatically)
Viscous Regime	Turbulent
EMP Turbulence	Phasic Turbulence (selected automatically)
Optional Models	Phase Coupled Fluid Energy Gravity

Click Close.

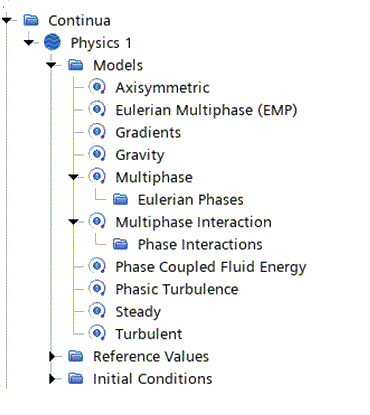

To review the models, open the Physics 1 > Models node.
To limit the minimum volume fraction, select the Physics 1 > Models > Eulerian Multiphase (EMP) node and set Minimum Volume Fraction to 1.0E-20.
Save the simulation.
