Setting Initial Conditions

Set the global initial conditions and the initial conditions for each phase.

To set the initial conditions:

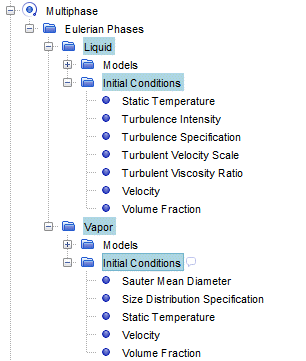

Edit the Physics 1 > Models > Multiphase > Eulerian Phases node and set the following properties for the liquid phase:


Node	Property	Setting
Liquid > Initial Conditions
Static Temperature	Value	$InletTemperature
Turbulence Intensity	Value	0.01
Turbulence Specification	Method	Intensity + Viscosity Ratio
Turbulence Velocity Scale	Value	1.0 m/s
Turbulent Viscosity Ratio	Value	200
Velocity	Method	Field Function
Velocity	Vector Function	InletVelocity
Volume Fraction	Value	1.0

Edit the same node and set the following properties for the vapor phase:


Node	Property	Setting
Vapor > Initial Conditions
Sauter Mean Diameter	Value	0.001 m
Size Distribution Specification	Method	Sauter Mean Diameter
Static Temperature	Value	$SaturationTemperature
Velocity	Method	Field Function
Velocity	Vector Function	InletVelocity
Volume Fraction	Value	0.0

The phase equations cannot be solved when volume fraction is identically zero. Therefore, for boundary conditions and for initial conditions, the code uses 10E-12 for vapor volume fraction rather than 0.0.

Save the simulation.
