Thickening a Body or a Face

Use the thicken operation to create a solid body by either thickening a sheet body by a specified amount, or by thickening a specific face on a solid body to create a separate solid body.

Thickening a sheet body converts the sheet body into a solid body. Thickening faces on a solid body creates additional solid bodies for each of the selected faces. You can thicken multiple bodies in a single operation.

To thicken a body:

Choose what type of entity you want to thicken:
- To thicken a sheet body, in the 3D-CAD View scene, right-click the sheet body and select Body > Thicken.
- To thicken a face on a solid body, in the 3D-CAD View scene, right-click the face on the solid body and select Face > Thicken.
Set the parameters for the thicken operation. See Thicken Sheet Body Panel.
To set the thickness:
- In the Thicken panel, set the Thickness.
- In the 3D-CAD View window, click and drag the arrow to change the Thickness parameter.
If you define the Thickness using a design parameter the arrow is hidden in the scene.

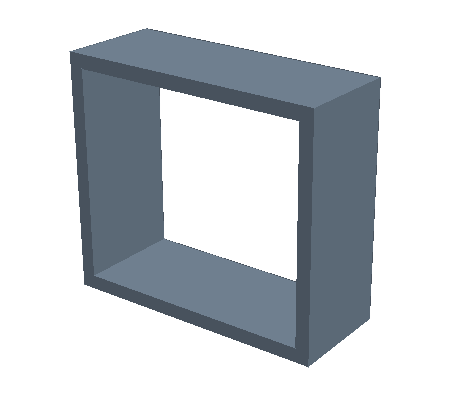

A preview of the operation is displayed in the graphics window. In the following example, the selected sheet body is highlighted in green.
Click OK.

A ThickenSheetBodies feature is added to the feature tree.
