Working with Circular Patterns

The circular pattern tool is used to reproduce a series of identical bodies, from seed bodies which follow a regular formation around a circle.

You can create a pattern feature from any number of bodies with the properties defined in the circular pattern dialog. A circular pattern cut is created in a similar way, however the seed body and pattern determine where material is removed from the model.

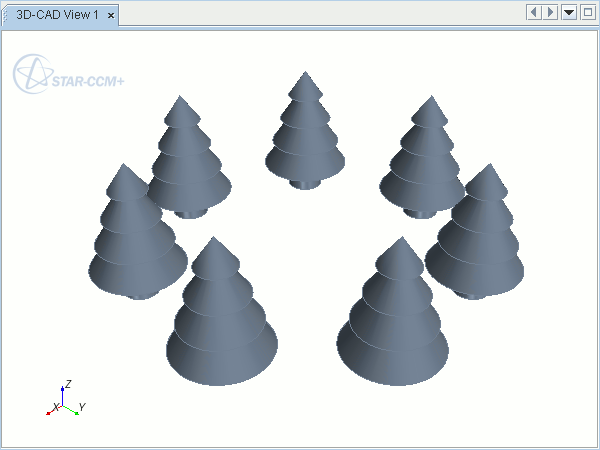

The pattern is created around a circle, which is defined by the position and direction of a central axis. The extent of the pattern is determined by the number of bodies and the angular increment between them, or the full circumference of the circle. The pattern can also extend in the radial direction according to the number of levels you define.

You cannot pattern body groups directly, however you can pattern the bodies that make up the body groups. The patterned bodies are placed within the parent body group. See Body Groups.
