Creating a Circular Pattern

When creating a circular pattern, you require at least one seed body.

To create a circular pattern:

In the Body Groups node, right-click on a seed body and select Pattern > Circular Pattern.
To modify the seed body selection, click inside the Seed Bodies to Pattern group box and select the bodies from the 3D-CAD View scene or from the 3D-CAD feature tree.
You cannot select body groups as seed bodies. You can however select the bodies inside a body group.
Use the Body Interaction option to control how patterned bodies to interact with existing bodies.
To add the patterned bodies, including the seed bodies, to a new body group, activate the Create Body Group option.
Leaving this option deactivated adds the patterned bodies as siblings to the seed bodies. If the seed bodies belong to a body group, the patterned bodies are added to the body group that contains the seed body.
Set up the remaining circular pattern options. See Body Circular Pattern Panel.
Expose any options as design parameters by clicking the corresponding (Expose Parameter) button.

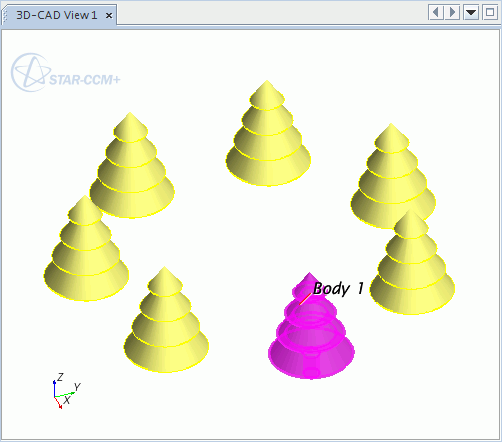

A preview of the operation is displayed in the 3D-CAD View scene.
Click OK.

The pattern is created. Additional bodies are added to the Body Groups node of the 3D-CAD object tree. Each new body has the name of the seed body plus the instance number. For example, if you use a body (named Tree) to create a circular pattern with 4 instances, the new bodies are called Tree (n), where n is the instance number of the body. If you rename the seed body and click the Update button, all child bodies adopt the new name plus the instance number, as previously described.

If you choose to merge bodies, the body that was created first is given priority and the patterned bodies merge with this body. If this body has a body group, the bodies are merged under this body group.

You can select each new body independently from the rest of the pattern. Therefore you can apply body operations, such as transform, unite, intersect, subtract, and imprint, to individual bodies.
