Setting a Phase Impermeable Boundary

Flow boundaries can be set to phase impermeable for Lagrangian multiphase flows. Phase impermeable means that particles do not pass through the boundary; instead they interact with the boundary as if it were a wall. Fluid in the continuous phase continues to pass through as normal.

To set a phase impermeable boundary:

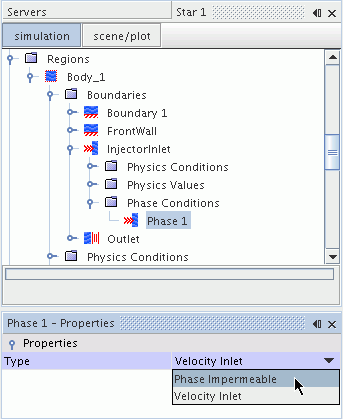

On a flow boundary, select the phase representation of the boundary node within the Phase Conditions manager.
In the Properties window, set Type to Phase Impermeable.

The boundary node within the Phase Conditions manager changes to a wall icon. The wall icon indicates that Lagrangian particles see the boundary as a wall.

To set specific wall interaction options on the impermeable boundary:

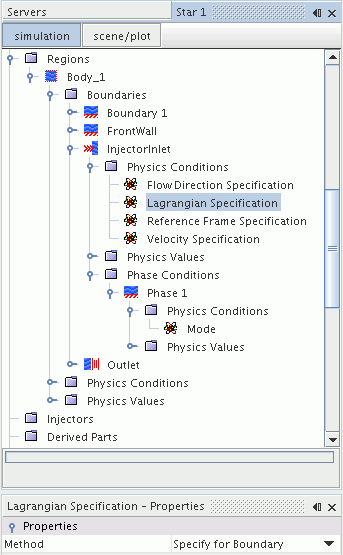

Select the Physics Conditions > Lagrangian Specification node of the parent boundary and set Method to Specify for Boundary.

The Physics Conditions and Physics Values manager nodes appear beneath the impermeable boundary node for the phase.
