Running the Simulation

Before running the simulation, you define the solver settings and stopping criteria. You are advised to run this tutorial on a multi-core machine with four cores or more.

Expand the Solvers node and set the following properties:


Node	Property	Value
Spalart-Allmaras Turbulence	Under-Relaxation Factor	0.9
Under-Relaxation Factor Ramp	Ramp Method	Linear Ramp
Linear Ramp	Start Iteration	1
	End Iteration	100
	Initial Value	0.5

Within the simulation tree, edit the Stopping Criteria node and set the following property


Node	Property	Setting
Maximum Steps	Enabled	Activated
	Maximum Steps	300

To run the simulation:

Click (Run) in the Solution toolbar.

The Residuals display is created automatically and shows the progress of the solver. Observe the run progress by selecting one of the tabs at the top of the Graphics window.

During the run, it is possible to stop the analysis by clicking (Stop) in the toolbar. Click (Run) to continue the solution. If left alone, the simulation continues until 300 iterations have been completed.

Once the iteration is complete, examine the lift and drag coefficient plots to check if the solution has converged.

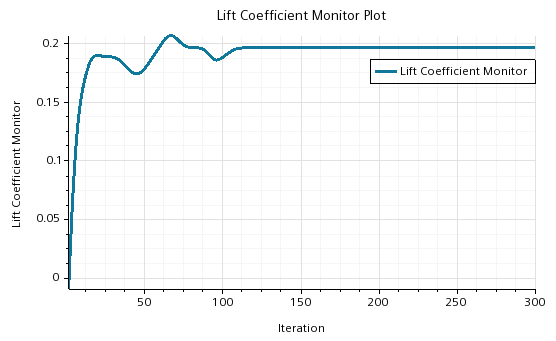

Double-click the Lift Coefficient Monitor Plot node to display the results in the Graphics window.

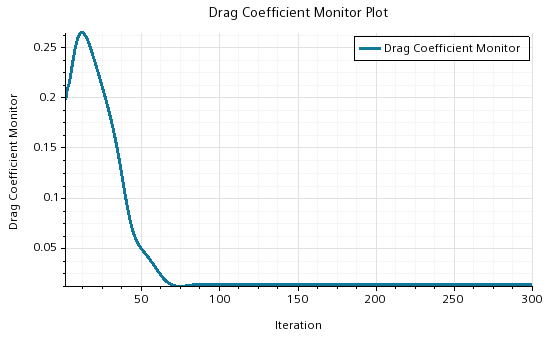

Similarly, display the drag coefficient plot.

Both monitors have reached constant values so it is reasonable to conclude that the solution has converged.
Save the simulation.
